• Early Access Edition •
Limited Time 20% Off
Extreme Discounts for PRE-ORDER / Early Access

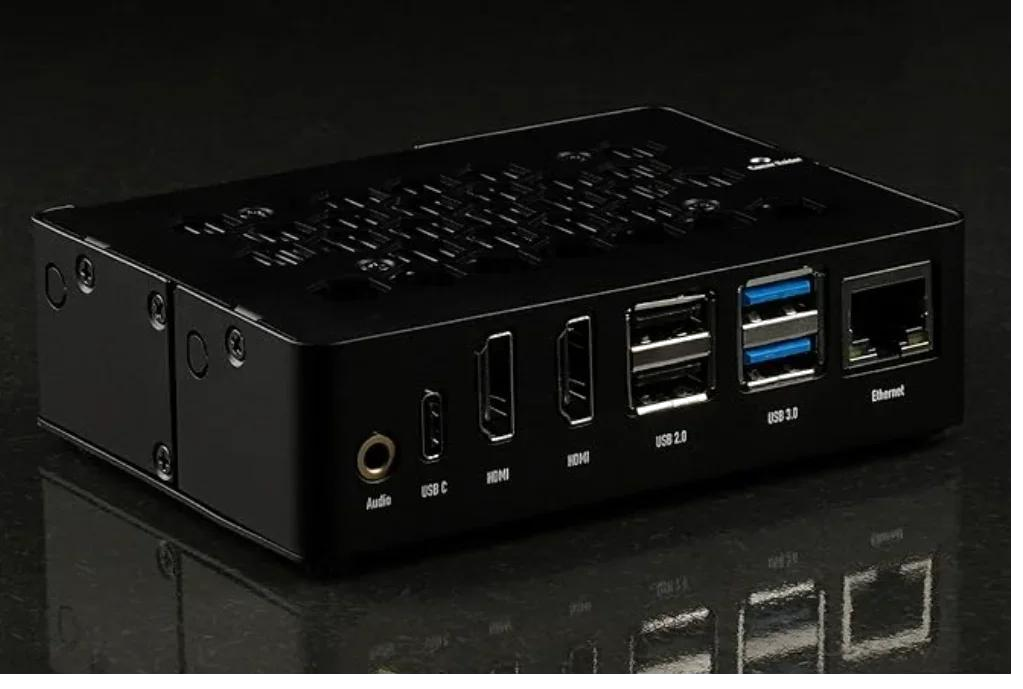

4K ProtoScaler

Professional Video Processing Redefined

4K ProtoScaler SP
<8ms
Scaling Latency
4K
Input Resolution
8kx2+4k
Triple Video Output
<80ms
Total Pipeline
Core Technology

Engineered for Excellence

Dedicated Silicon

AMD Ryzen 8845HS with 8 cores @ 5.1Ghz for the CPU, and a dedicated GPU for the scaler ensures no overhead is added to the main processing pipeline.

16x Neural Processing Unit + GPU

The 16x Neural Processing Unit assists the tone mapping and AI workload, and the GPU delivers high performance for such a small form factor.

Low Frame Latency

Optimized C++ video processing code provides low frame and subframe latency. This allows multiple complex processing operations per frame in real time.

Media Player with Expandable Storage

512GB default NVMe storage, internally upgradeable to 8+ Terabytes, and externally upgradeable to 50+ Terabytes using NVMe in the optional chassis.

Automatic Aspect Sizing

Applies to Projector CIH / Scope Screens. Intelligent aspect ratio detection with automatic scaling and user configurable digital masking. Scales to properly formatted 16:9 aspect ratio.

Power Efficient

Under heavy load, the device is expected to use lower wattage than most comparable processors.

Video Processing

The scaler is a multifaceted video device that performs many common video processing functions such as tone mapping, sharpening, anti-clipping (clipping shield), and more. Many functions are still under development, check the status page for the latest info.

Linux Mode

The primary video processing and scaler is handled with a custom Linux build that uses a high performing C++ user interface. The UI will function similar to other streaming devices.

Android Mode (DP Versions Only)

The up and coming DP versions of the ProtoScaler include a dual boot where you can select Android or Linux. In Android mode, you can play Android games, browse the web, etc...

Technical Details

Full Specifications

Primary Processor AMD Ryzen 8845HS (8 Cores @ 5.1Ghz)
Dedicated Scaler = GPU TBA
Memory 8GB to 32GB RAM
Primary Storage 512GB to 8+ Terabyes (50+ TB with External Chasis)
Secondary Storage TBD*
Video Output Triple Video Output (8K/60 and 4K/120)
Ethernet 2.5GbE Network Port (RJ45)
Wireless WiFi 6 (802.11ax) Dual-band
Bluetooth 5.3
6 USB Ports 1x USB 4.0, 1x USB-C, 2x USB 3.2, 2x USB 2.0
Scaling Latency 8ms or less per 4K frame
Total Pipeline Latency <80ms

* Android dual boot available for Beta Testers and DP versions only

Connectivity

I/O & Ports

4K Input
4K/30 (SP) or 4K/60 Input (DP)
Triple Video Output
8K and 4K
1×
1x USB 4.0 and 1x USB-C
2×
2x USB 3.2 and 2x USB 2.0
RJ45
2.5GbE Ethernet
Bluetooth
Includes Bluetooth 5.2
⏻
Dedicated Power
Small Form Factor
About the size of a mid-sized external hard drive shell
Aluminum Finned design for maximum cooling
Exact Size: TBA
Packaged With
Video Processing Hardware
Cables and adapters
Bluetooth Remote Control
25 Watt Power Brick
Other accessories are available
Intelligent Processing

Software Features

Automatic OTA Firmware Updates
Intelligent Aspect Ratio Detection (for CIH/Scope Projector Screens)
Digital Lens & Blanking Memory
Built-in 4K Media Player
Split Screen Comparison Mode
Coming Soon

Prospective Features

(Under Development)
New 4K HDR Tone Mapping Engine
Predictive Video Algorithms with AI Enhancements
4K SDR and 4K HDR Test Patterns
Experimental 8K Upscaler
Linux Scaler with Dual-Boot for Android Gaming (DP or Beta versions only)
Industry Leading AI includes sharpening and other algorithms never before seen
Available Editions (after Early Access)

4K ProtoScaler Hardware Versions

ProtoScaler SP
AMD Ryzen 8845HS
512 Gigabyte Edition (8GB RAM)
Linux Only
Pricing
TBD
Early Access Pricing is much lower
1 Year 2 Year Warranty
(longer warranty for early access only)
ProtoScaler SP Ultra
AMD Ryzen 8845HS
1 Terabyte Edition (16GB RAM)
Linux Only
Pricing
TBD
2 Year Warranty
ProtoScaler DP
Faster CPU / Faster GPU (TBA)
2TB Default Linux Storage
+ Android OS
(24GB RAM)
Dual Boot OS
(Linux VP + Android Gaming + Web)
Pricing TBD
3 Year Advanced Replacement Warranty
ProtoScaler DP Ultra
Fastest CPU / Fastest GPU (TBA)
4TB Default Linux Storage
+ Android OS
(32GB RAM)
Dual Boot OS
(Linux VP + Android Gaming + Web)
Pricing TBD
5 Year Advanced Replacement Warranty
Optional Accessories
Bluetooth Keyboard and Mouse — $45

Join the Early Access

Be among the first to experience professional grade video scaling.
Limited Early Access Edition units shipping soon.

Pre-Order Signup Coming Soon

For any questions, email support@protoscaler.com

Note:  Ordering is not yet available. We will announce release dates once our timeline is confirmed. Pricing is subject to change at any time and without prior notice.
